A Cheltenham family needed AC across three rooms with no visible pipework. Kenny installed a Daikin multi-head system across living, master bedroom, and home office, all lines run through the ceiling cavity.
.png)
What the Client Needed.
The home had no air conditioning at all just ceiling fans. With three young kids and Melbourne summers getting hotter, the family needed a proper multi-room solution. The key constraint was aesthetics: no surface-mounted conduit or pipe runs visible anywhere inside the home.
A multi-head system was the right call, one outdoor unit, three indoor heads, all controlled independently. The client had already chosen Daikin based on a neighbour's recommendation. Kenny's job was to design the installation route and execute it cleanly.
The job ran across two days: pipe runs and electrical work on day one, indoor unit mounting and commissioning on day two. Good roof cavity clearance on this property made concealing the refrigerant lines straightforward.
From the Job
How Kenny
Got It Done
Route Planning & Electrical Assessment
Roof cavity inspected for clearance and existing wiring conflicts. Outdoor unit location selected on the north wall to minimise pipe run length.
Refrigerant Line Runs, Ceiling Cavity
All three refrigerant line sets run through the ceiling cavity. Entry points into each room made through the ceiling, no lines visible on walls at any point.

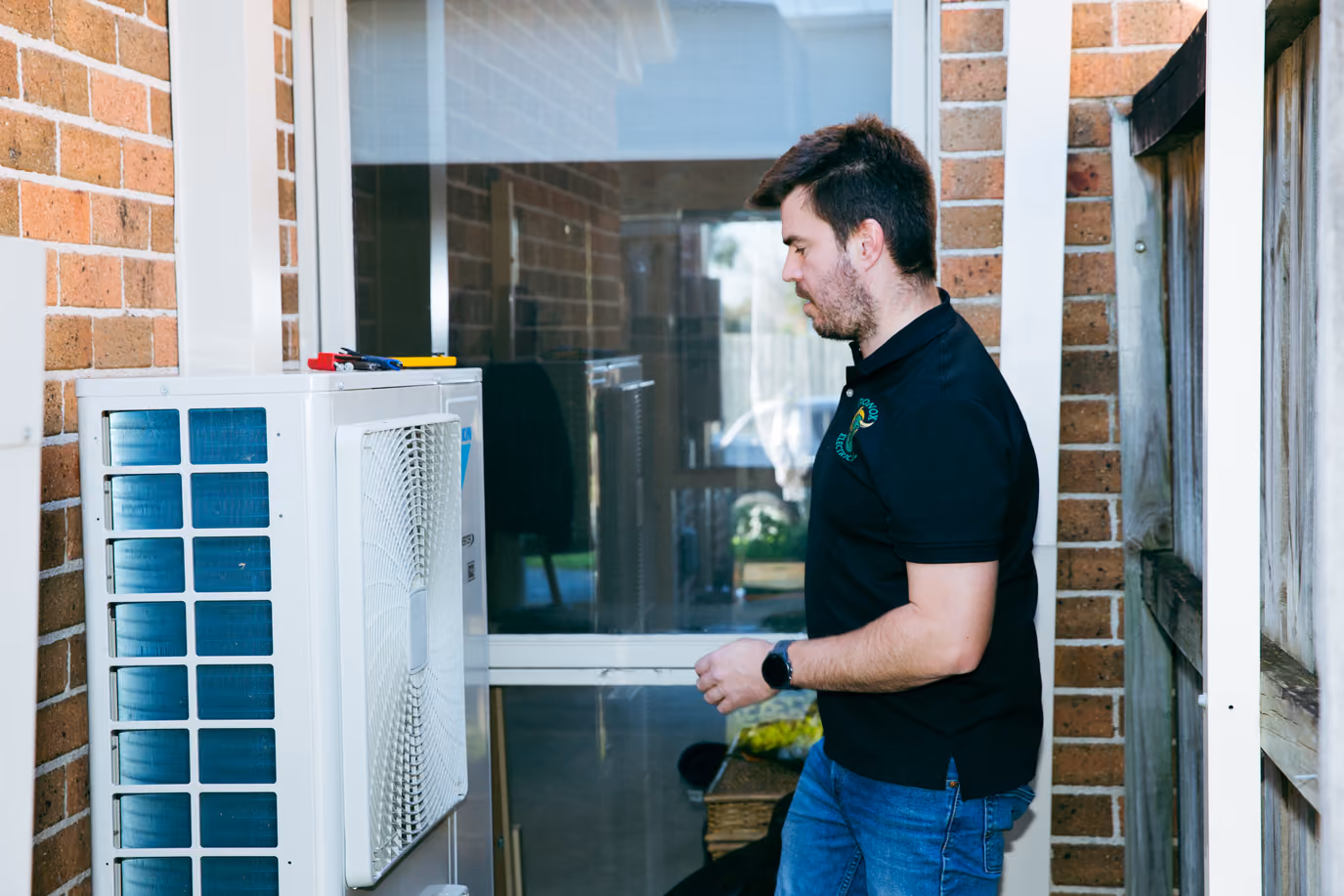

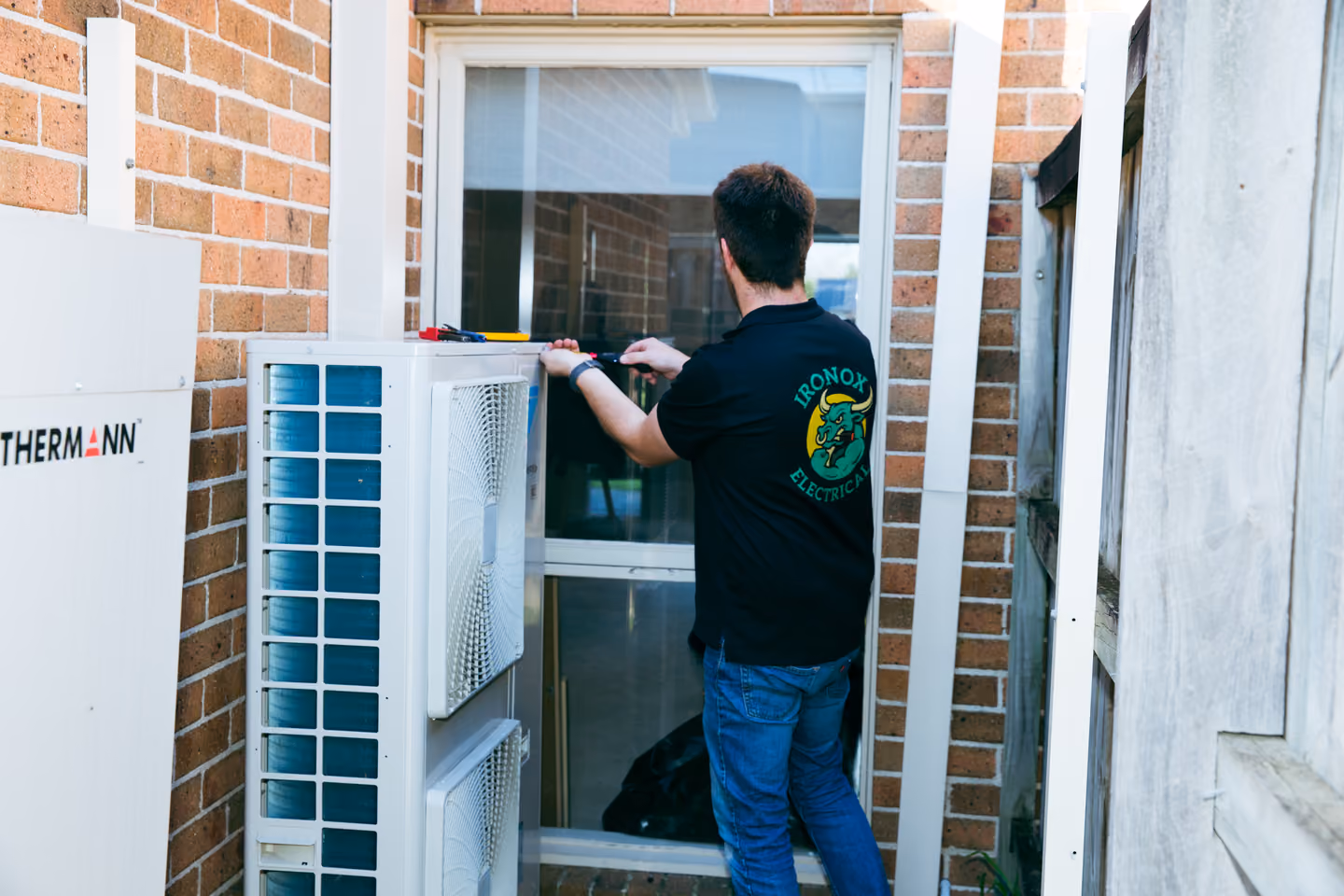

Outdoor Unit Mounted & Wired
Daikin multi-head outdoor unit mounted on wall brackets at 400mm clearance. Dedicated electrical circuit run from switchboard to outdoor unit.
Indoor Units Mounted in All 3 Zones
Daikin wall-mounted heads installed in living room, master bedroom, and home office. All electrical connections made and refrigerant lines connected and pressure tested.
System Commissioned & Tested
Full refrigerant charge verified. All three zones tested for heating and cooling. Daikin app set up on client's phone. Certificate of Electrical Safety issued.
Job Details
& Outcomes.
- 3-zone independent climate control across living, master, and home office
- Zero visible pipe runs or conduit inside the home
- Daikin app control with scheduling and energy usage tracking
- Dedicated electrical circuit from switchboard to outdoor unit
- Certificate of Electrical Safety issued on completion
